Sandvik Coromant SANC 7859088

Sandvik Coromant 7859088 CoroTurn 107 Turning Insert, ANSI Code: CCMT 3(2.5)1-WM 4415, CCMT Insert, 32.51 Insert, Diamond Shape, Left/Right Hand Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4415

UNSPSC:
Manufacturer PN: 7859088
$24.13 EA
Factory Order
Estimated to ship in 14 days
QTY:

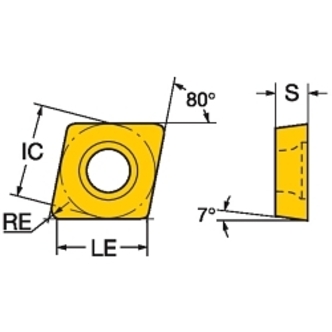

Sandvik Coromant Turning Insert, Series: CoroTurn 107, CCMT Insert, 32.51 Insert, Diamond Shape, 4 mm Maximum Depth of Cut, 3/8 in Inscribed Circle, 5/32 in Thickness, 0.365035 in Length, Single-Sided WM Chipbreaker, 0.015626 in Corner Radius, 6 to 80 mm Diameter Hole, Manufacturers Grade: 4415, ANSI Code: CCMT 3(2.5)1-WM 4415, ISO Code: CCMT 09 T3 04-WM 4415, 80 deg Included Angle, 7 deg Relief Angle, Left/Right Hand Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, For Use On: Cast Iron and Steel

  • Features

  • Geometries and grades for all application areas
  • Insert grades also in advanced cutting materials PCD, CBN and ceramic
  • Medium to finishing operation
  • 0.5 to 4 mm depth of cut for cast iron and steel
  • Two cutting edges
  • True wiper edge property
ApplicationTurning and General Applications
