Sandvik Coromant SANC 7860598

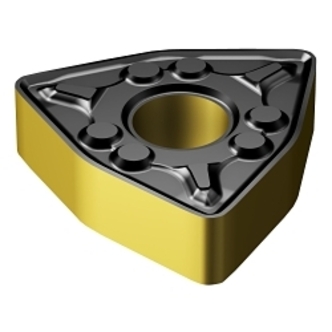

Sandvik Coromant 7860598 T-Max P 6-Cutting Edge Turning Insert, ANSI Code: WNMG 332-WMX 4415, WNMG Insert, Material Grade: P, K, 0604 Insert, Trigon Shape, Neutral Cutting, For Use On Steel and Cast Iron, Carbide, Manufacturers Grade: 4415
Invoice description:
Ins Wnmg 332-wmx 4415
Factory Order
Sandvik Coromant Turning Insert, 6-Cutting Edge, Series: T-Max P, WNMG Insert, 0604 Insert, Trigon Shape, 3/8 in Inscribed Circle, 3/16 in Thickness, WMX Chipbreaker, 0.0312 in Corner Radius, Manufacturers Grade: 4415, ANSI Code: WNMG 332-WMX 4415, ISO Code: WNMG 06 04 08-WMX 4415, 80 deg Included Angle, 0 deg Relief Angle, Neutral Cutting Direction, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, K, For Use On: Steel and Cast Iron
Features
- Reliable and secure machining, even in roughing applications
- Possibility to optimize by using damped Silent tools
- Stable and secure clamping
- Geometries and grades for all application areas
- Insert grades also in advanced cutting materials PCD, CBN and ceramic
- Inserts dedicated for precision coolant
Specifications
ApplicationFor longitudinal turning, face turning, profiling, roughing to finishing and medium applications
ANSI CodeWNMG 332-WMX 4415
ChipbreakerWMX
Corner Radius0.0312 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnSteel and Cast Iron
Included Angle80 deg
Inscribed Circle3/8 in
Insert Size0604
Insert StyleWNMG
ISO CodeWNMG 06 04 08-WMX 4415
Manufacturers Grade4415
MaterialCarbide
Material GradeP, K
Relief Angle0 deg
SeriesT-Max P
ShapeTrigon
Thickness3/16 in
Type6-Cutting Edge
Additional Information
Country of OriginSE
