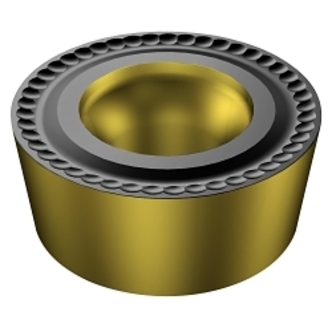

Sandvik Coromant SANC 7080657
Sandvik Coromant 7080657 CoroTurn 107 1-Sided Basic Shape Turning Insert, ANSI Code: RCMT 3(2.5)M0 4335, RCMT Insert, Material Grade: P, 3(2.5)M0 Insert, Round Shape, 09 Seat, Positive Rake, Neutral Cutting, For Use On Steel, Carbide
Invoice description:
Ins Rcmt 3(2.5)m0 4335
Factory Order
Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, RCMT Insert, 3(2.5)M0 Insert, Round, 0.15 in Maximum Depth of Cut, 3/8 in Inscribed Circle, 0.156 in Thickness, 09 Seat, Positive Rake, 0.187 in Corner Radius, Manufacturers Grade: 4335, ANSI Code: RCMT 3(2.5)M0 4335, ISO Code: RCMT 09 T3 00-M0 4335, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: P, For Use On: Steel
Features
- Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
- The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
- Wiper geometries available for high feeds and high quality surface finish
- Ground, super sharp insert offer for exceptional surface finish
Specifications
ApplicationMedium Applications
ANSI CodeRCMT 3(2.5)M0 4335
Corner Radius0.187 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnSteel
Inscribed Circle3/8 in
Insert Size3(2.5)M0
Insert StyleRCMT
ISO CodeRCMT 09 T3 00-M0 4335
Manufacturers Grade4335
MaterialCarbide
Material GradeP
Maximum Depth of Cut0.15 in
RakePositive
Relief Angle7 deg
Seat Size09
SeriesCoroTurn 107
ShapeRound
Thickness0.156 in
Type1-Sided Basic Shape
Additional Information
Standards/ApprovalISO Certified
Country of OriginSE
Sds
