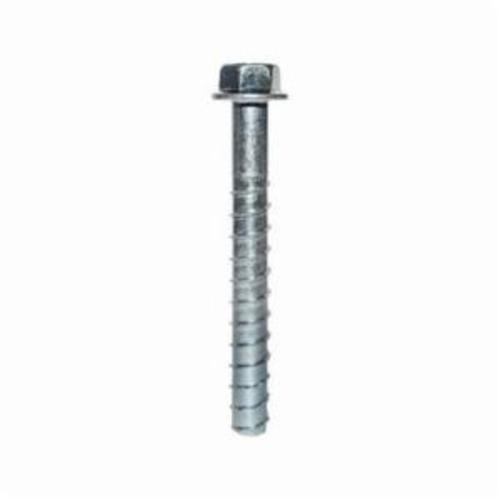

Simpson Strong-Tie® SIMS THD75700H

Simpson Strong-Tie® THD75700H Heavy Duty Screw Anchor, 3/4 in Dia, 7 in OAL, Hex Washer Head Drive, Carbon Steel, 5-1/2 in D Min Embedment

UPC: 707392180302
UNSPSC: 31162101
Manufacturer PN: THD75700H
$39.90 BX
Factory Order
Estimated to ship in 7 days
QTY:


Simpson Strong-Tie® Screw Anchor, Heavy Duty, Series: Titen HD®, 3/4 in Diameter, 7 in Overall Length, Hex Washer Head Drive, Carbon Steel, 5-1/2 in Minimum Embedment Depth, 3/4 in Drill, Zinc Plated, Applicable Materials: Concrete/Masonry, 1-1/8 in Head, 10 in Maximum Work Thickness, 16840 lb Shear Strength, 45540 lb Tensile Strength

  • Features

  • Code listed under IBC/IRC in accordance with ICC-ES AC193 for cracked and uncracked concrete per ICC-ES ESR-2713
  • Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
  • Qualified for static and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • Standard fractional size
  • Specialized heat treating process creates tip hardness for better cutting without compromising the ductility
  • No special drill bit required, designed to install using standard-sized ANSI tolerance drill bits
  • Testing shows the Titen HD® installs in concrete with 50% less torque than competitor anchors
  • Hex washer head requires no separate washer and provides a clean installed appearance
  • Removable - ideal for temporary anchoring or applications where fixtures may need to be moved

Specifications

ApplicationFormwork and Bracing
Type Heavy Duty
Series Titen HD®
Diameter 3/4 in
Overall Length 7 in
Head Drive Type Hex Washer
Material Carbon Steel
Minimum Embedment De 5-1/2 in
Drill Size 3/4 in
Finish Zinc Plated
Applicable Materials Concrete/Masonry
