Simpson Strong-Tie® SIMS THDB25300H

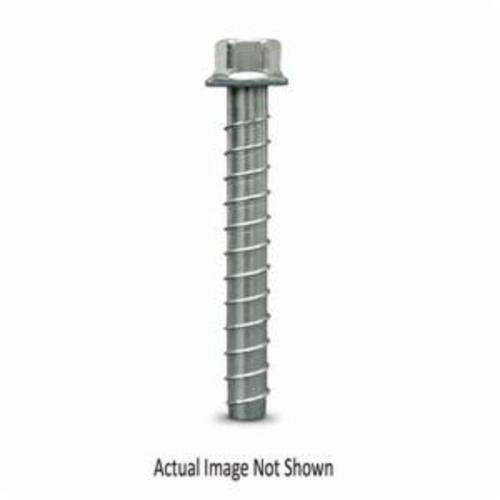

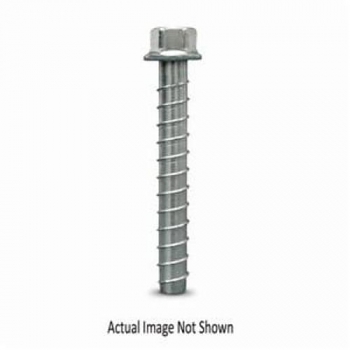

Simpson Strong-Tie® THDB25300H Heavy Duty Screw Anchor, 1/4 in Dia, 3 in OAL, Hex Washer Head Drive, Carbon Steel, 1-5/8 in D Min Embedment

UPC: 707392951254
UNSPSC: 31162101
Manufacturer PN: THDB25300H
$39.18 BX
In stock (49)
QTY:

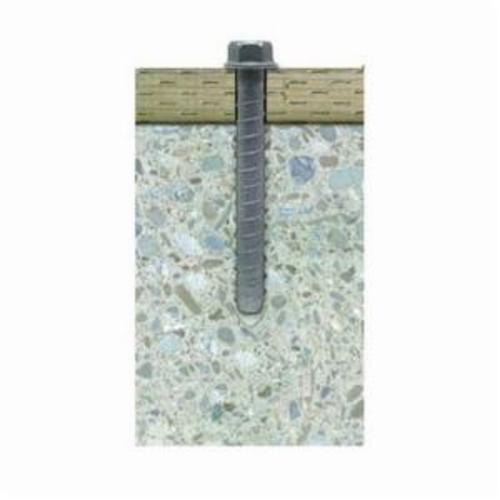

Simpson Strong-Tie® Screw Anchor, Heavy Duty, Series: Titen HD®, 1/4 in Diameter, 3 in Overall Length, Hex Washer Head Drive, Carbon Steel, 1-5/8 in Minimum Embedment Depth, 1/4 in Drill, Zinc Plated, Applicable Materials: Concrete/Masonry, 3/8 in Head, 3-1/2 in Maximum Work Thickness, 2020 lb Shear Strength, 5195 lb Tensile Strength

  • Features

  • Code listed under IBC/IRC in accordance with ICC-ES AC193 for cracked and uncracked concrete per ICC-ES ESR-2713
  • Code listed under IBC/IRC in accordance with ICC-ES AC106 for masonry per ICC-ES ESR-1056
  • Qualified for static and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • Standard fractional size
  • Specialized heat treating process creates tip hardness for better cutting without compromising the ductility
  • No special drill bit required, designed to install using standard-sized ANSI tolerance drill bits
  • Testing shows the Titen HD® installs in concrete with 50% less torque than competitor anchors
  • Hex washer head requires no separate washer and provides a clean installed appearance
  • Removable - ideal for temporary anchoring or applications where fixtures may need to be moved

Specifications

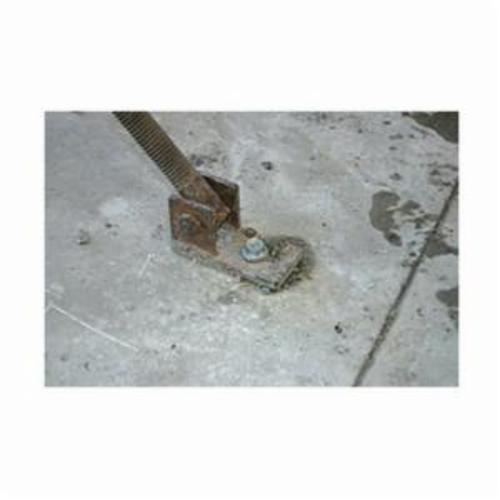

ApplicationFormwork and Bracing
Type Heavy Duty
Series Titen HD®
Diameter 1/4 in
Overall Length 3 in
Head Drive Type Hex Washer
Material Carbon Steel
Minimum Embedment De 1-5/8 in
Drill Size 1/4 in
Finish Zinc Plated
Applicable Materials Concrete/Masonry
