Milwaukee MILW 4210-1

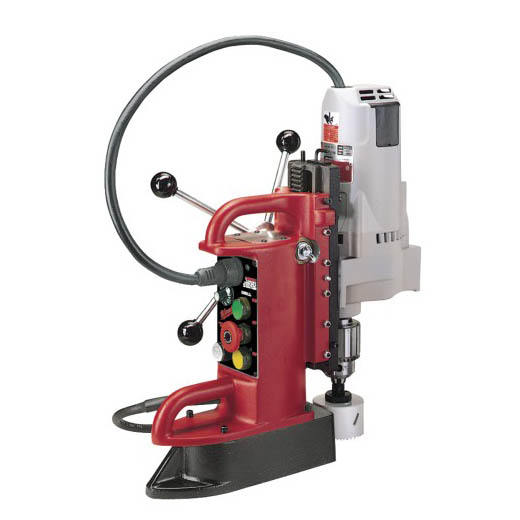

Milwaukee 4210-1 Fixed Position Electromagnetic Drill Press, 3/4 in Chuck, 2 hp, 5-3/32 in Drill to Center From Base, 350 rpm Spindle Speed, 120 VAC

UPC: 045242012848
UNSPSC: 23241801
Manufacturer PN: 4210-1
$2,330.00 EA
Factory Order
QTY:


Milwaukee Electromagnetic Drill Press, Fixed Position, 3/4 in Chuck, 9 in Spindle Travel, 350 rpm Spindle Speed, 1 Spindle Speed, 1630/1670 lb Drill Point, 5-3/32 in Drill to Center From Base, 20-1/2 in Overall Height, 2 hp, 120 VAC, 12.5 A, 18-3/4 in L x 7 in W Dimensions

  • Features

  • Powerful 12.5 A motor, engineered for the toughest applications, delivering 350 rpm
  • Dual-mount gear case/reverse mount, permits tight quarter drilling
  • Taps up to 1-14 threaded holes
  • Maximum force develops up to 1670 lb of drill point pressure with a 1 in steel plate
  • Solid state electronic switching, offers faster, smoother and quieter switching for a longer product lifespan
  • Line lockout prevents tool from operating if voltage is restored to an interrupted line
  • Motor magnet lockout prevents de-mag during operation
  • Full wave holding power
  • Cast iron table
  • Grounded construction

Specifications

Amperage Rating12.5 A
Chuck Size3/4 in
Dimensions18-3/4 in L x 7 in W
Drill Point Pressure1630/1670 lb
Drill to Center From Base5-3/32 in
Horsepower2 hp
Number of Spindle Speeds1
Overall Height20-1/2 in
Spindle Speed350 rpm
Spindle Travel9 in
TypeFixed Position
Voltage Rating120 VAC
