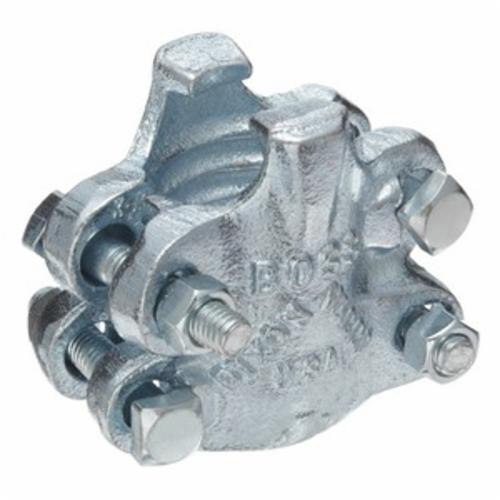

Dixon DIXV B14

Dixon The Right Connection B14 Boss 4-Bolt Hose Clamp, 1 in ID x 1-44/64 to 1-60/64 in OD, Malleable Iron Band, Domestic

Invoice description: Coupler Steam

UPC: 640027080595
UNSPSC: 31162906
Manufacturer PN: B14
$22.38 EA
Factory Order
Estimated to ship in 7 days
QTY:


Dixon The Right Connection Hose Clamp, 4-Bolt, Series: Boss, 1 in Inside Dia, 1-44/64 to 1-60/64 in Outside Dia, 21 ft-lb, 450 deg F, Malleable Iron Band, Zinc Plated, Domestic

  • Features

  • Bolts in boss clamps are designed to bend as they are tightened
  • This allows the clamp to conform to the hose outside Dia
  • Always tighten bolts to their specified torque value
  • Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses
  • Boss clamps are for single use only, once removed they are to be discarded
  • 4-bolt type clamp with 2 gripping fingers and 2 clamp sections
  • Nut and bolt locking

Specifications

Band MaterialMalleable Iron
Domestic/ImportDomestic
FinishZinc Plated
Inside Diameter1 in
Outside Diameter1-44/64 to 1-60/64 in
SeriesBoss
Temperature Rating450 deg F
Torque Rating21 ft-lb
Type4-Bolt

Additional Information

Country of OriginUS
