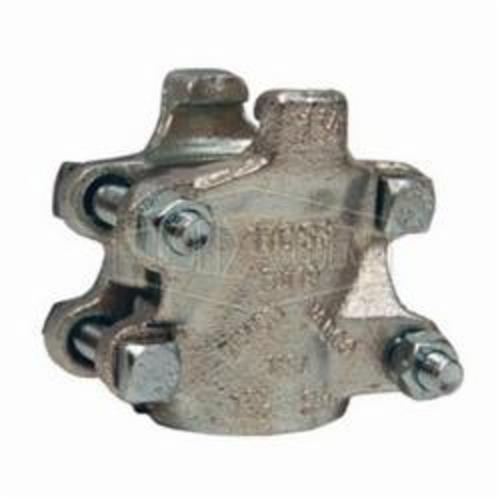

Dixon DIXV BU14

Dixon BU14 Boss 4-Bolt Clamp, 1 in ID x 1-34/64 to 1-46/64 in OD, Iron Band, Domestic

Invoice description: Clamp Boss 1" 1-34/64 To 1-46/64

UNSPSC: 31162906
Manufacturer PN: BU14
$24.58 EA
Factory Order
Estimated to ship in 7 days
QTY:


Dixon 4-Bolt Clamp, Series: Boss, 1 in Inside Dia, 1-34/64 to 1-46/64 in Outside Dia, 2-7/8 in Length, 3-1/8 in Width, 9/16 in Hex Bolt, 21 ft lb, Iron Band, Zinc Plated, Domestic

  • Features

  • Recommended for steam service up to 450 deg F
  • Replacement nuts and bolts are available
  • Two gripping fingers and two clamps sections
  • The bolts used in the boss interlocking clamps are not standard bolts
  • They vary from standard bolts in their lengths, diameter, overall thread lengths and materials hardness
  • These bolts can be retorqued, but it is not recommended to reuse the bolts or clamps, as they are designed for a single bend only
  • Torque values for clamps are based on dry bolts
  • The use of lubricant on bolts will adversely effect clamps performance
  • Do not lubricate nuts and bolts
  • Bolts in boss clamps are designed to bend as they are tightened and this allows the clamps to conform to the hose outside diameter

Specifications

Band MaterialIron
Bolt Size9/16 in Hex
Domestic/ImportDomestic
FinishZinc Plated
Inside Diameter1 in
Length2-7/8 in
Outside Diameter1-34/64 to 1-46/64 in
SeriesBoss
Torque Rating21 ft-lb
Width3-1/8 in

Additional Information

Country of OriginUS
