Dixon DIXV BU9

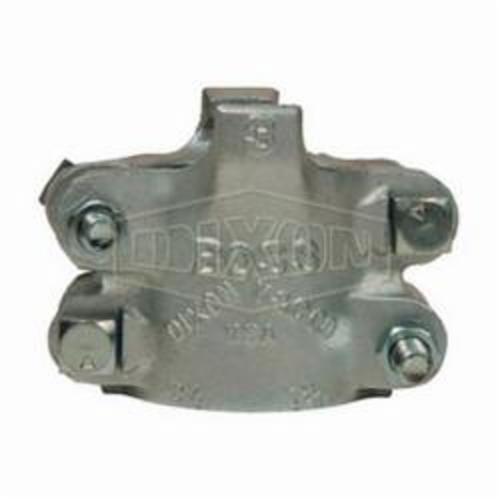

Dixon BU9 Boss 2-Bolt Clamp, 3/4 in ID x 1-10/64 to 1-20/64 in OD, Iron Band

Invoice description: Clamp 3/4" Boss Bu-9b

UNSPSC: 31162906
Manufacturer PN: BU9
$13.02 EA
In stock (15)
QTY:


Dixon 2-Bolt Clamp, Series: Boss, 3/4 in Inside Dia, 1-10/64 to 1-20/64 in Outside Dia, 2-31/32 in Length, 2-9/16 in Width, 9/16 in Hex Bolt, 21 ft lb, Iron Band, Zinc Plated

  • Features

  • Recommended for steam service up to 450 deg F
  • Replacement nuts and bolts are available
  • Two gripping fingers and two clamps sections
  • The bolts used in the boss interlocking clamps are not standard bolts
  • They vary from standard bolts in their lengths, diameter, overall thread lengths and materials hardness
  • These bolts can be retorqued, but it is not recommended to reuse the bolts or clamps, as they are designed for a single bend only
  • Torque values for clamps are based on dry bolts
  • The use of lubricant on bolts will adversely effect clamps performance
  • Do not lubricate nuts and bolts
  • Bolts in boss clamps are designed to bend as they are tightened and this allows the clamps to conform to the hose outside diameter

Specifications

Band MaterialIron
Bolt Size9/16 in Hex
FinishZinc Plated
Inside Diameter3/4 in
Length2-31/32 in
Outside Diameter1-10/64 to 1-20/64 in
SeriesBoss
Torque Rating21 ft-lb
Width2-9/16 in
