Sandvik Coromant SANC 6532163

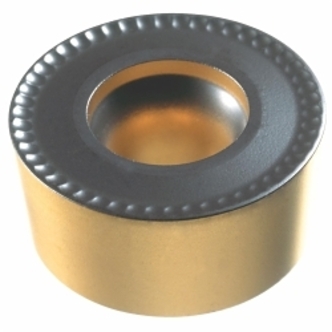

Sandvik Coromant 6532163 CoroTurn 107 1-Sided Basic Shape Turning Insert, ANSI Code: RCMT 25 07 M0 4325, RCMT Insert, Material Grade: K, P, 2507M0 Insert, Round Shape, 25 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

UNSPSC:
Manufacturer PN: 6532163
$67.90 EA
Factory Order
Estimated to ship in 14 days
QTY:


Sandvik Coromant Turning Insert, 1-Sided Basic Shape, Series: CoroTurn 107, RCMT Insert, 2507M0 Insert, Round, 0.394 in Maximum Depth of Cut, 0.984 in Inscribed Circle, 5/16 in Thickness, 25 Seat, Positive Rake, 0.492 in Corner Radius, 0.2992 in Hole Dia, Manufacturers Grade: 4325, ANSI Code: RCMT 25 07 M0 4325, ISO Code: RCMT 25 07 M0 4325, 7 deg Relief Angle, Neutral Cutting, Carbide, CVD-TiCN+Al2O3+TiN Coated, Material Grade: K, P, For Use On: Cast Iron and Steel

  • Features

  • Exceptional surface finish when turning internally or machining slender components, you can rely on the super sharp cutting edges of CoroTurn 107
  • The low cutting forces and precision coolant combined with a broad range of inserts ensures high quality surface finish
  • Wiper geometries available for high feeds and high quality surface finish
  • Ground, super sharp insert offer for exceptional surface finish

Specifications

ApplicationMedium Applications
ANSI CodeRCMT 25 07 M0 4325
Corner Radius0.492 in
Cutting DirectionNeutral
FinishCVD-TiCN+Al2O3+TiN Coated
For Use OnCast Iron and Steel
Hole Diameter0.2992 in
Inscribed Circle0.984 in
Insert Size2507M0
Insert StyleRCMT
ISO CodeRCMT 25 07 M0 4325
Manufacturers Grade4325
MaterialCarbide
Material GradeK, P
Maximum Depth of Cut0.394 in
RakePositive
Relief Angle7 deg
Seat Size25
SeriesCoroTurn 107
ShapeRound
Thickness5/16 in
Type1-Sided Basic Shape
