Simpson Strong-Tie SIMS WA37300

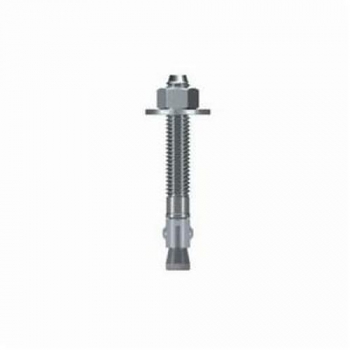

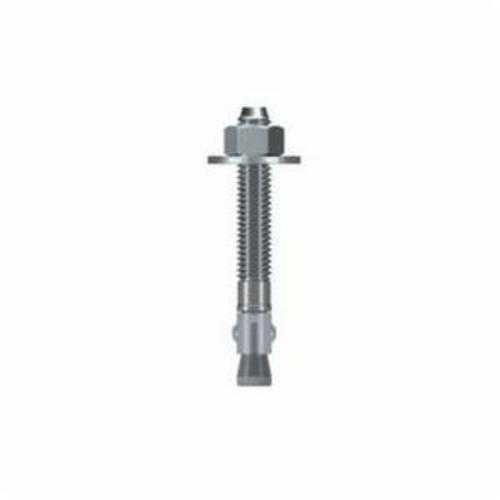

Simpson Strong-Tie Wedge Anchor, Series: Wedge-All, 3/8 in Dia, 3 in Overall Length, 1-7/8 in Thread Length, Carbon Steel, Zinc Plated, 1-3/4 in Minimum Embedment Depth, 3/8 in Drill, 9/16 in Head, 570 lb Shear Strength, 261 lb Tensile

• Features

• Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
• One-piece, wrap-around clip ensures uniform holding capacity
• Threaded end is chamfered for ease of starting nut
• Available in a wide range of diameters and lengths
• Carbon steel ASTM A563 grade A nut
• The minimum concrete thickness is 1-1/2 times the embedment depth
• The allowable loads are based on a safety factor of 4
• 7/16 in minimum fixture hole
• 30 ft-lb installation torque
• 1560 lb at 2000 psi/2880 lb at 4000 psi ultimate tension loads and 390 lb at 2000 psi, 555 lb at 3000 psi, 720 at 4000 psi allowable tension load for concrete
