Simpson Strong-Tie® SIMS STB2-25214

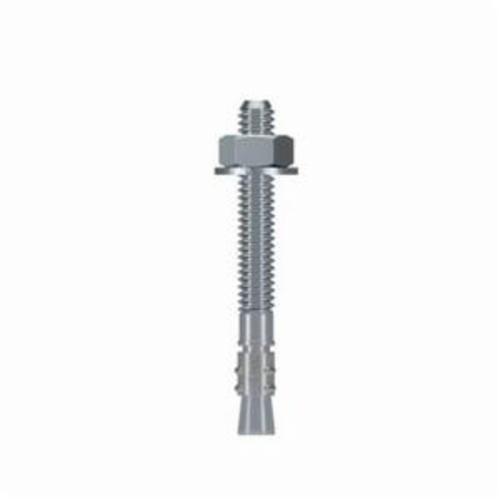

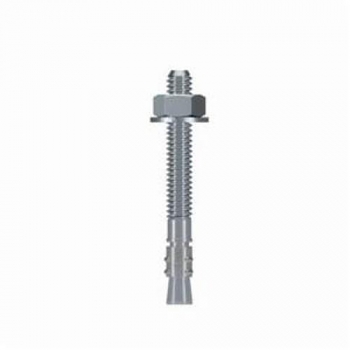

Simpson Strong-Tie® STB2-25214 Strong-Bolt® 2 Wedge Anchor, 1/4 in Dia, 2-1/4 in OAL, 1-7/16 in L Thread, Carbon Steel, Zinc Plated
UPC: 707392455509
UNSPSC:
31162102
Manufacturer PN: STB2-25214
$43.54 BX
Factory Order
Estimated to ship in 6 days
Estimated to ship in 6 days
Simpson Strong-Tie® Wedge Anchor, Series: Strong-Bolt® 2, 1/4 in Dia, 2-1/4 in Overall Length, 1-7/16 in Thread Length, Carbon Steel, Zinc Plated, 1-3/4 in Minimum Embedment Depth, 1/4 in Drill, 1-7/16 in, 7/16 in Head, 3-1/4 in Maximum Work Thickness, 70000 psi Tensile
Features

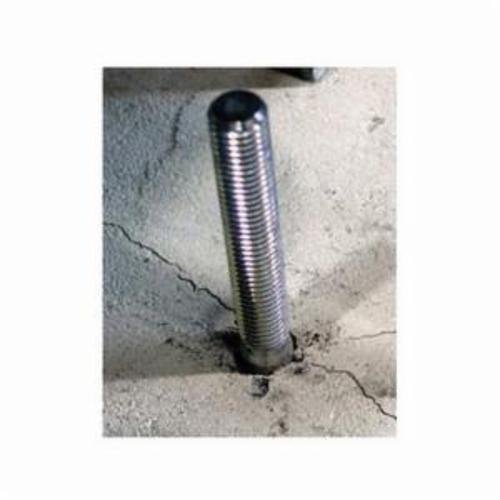

- Tri-segmented clip, each segment adjusts independently, increasing follow-up expansion, should the hole increase in size as a result of a crack
- Dual embossments on each clip segment, enable the clip to undercut into the concrete, thereby increasing follow-up expansion should a crack occur
- Standard (ANSI) fractional anchor, The Strong-Bolt 2 is sized to fit most fixtures and it installs with common drill bit sizes and tools
- Standard fractional sizes fits standard fixtures and installs with common drill bit and tool sizes
- Carbon steel stud with special alloy clip
- Carbon steel ASTM A563 grade A nut
- Carbon steel ASTM F844 washer
- Carbon steel ASTM A568 clip
- 5/16 in Dia baseplate clearance hole
- 4 ft-lb installation torque
Specifications

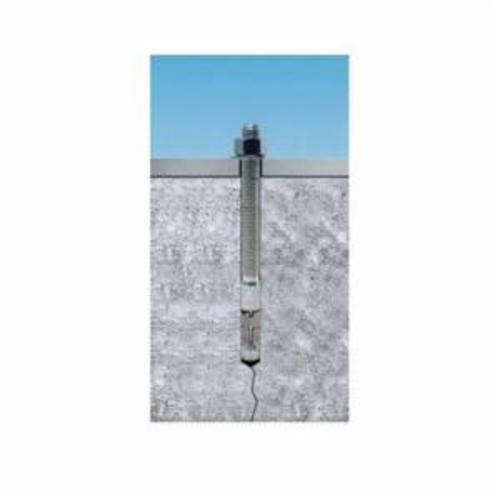

ApplicationFor optimal performance in cracked and uncracked concrete as well as uncracked masonry
Series Strong-Bolt® 2
Diameter 1/4 in
Overall Length 2-1/4 in
Thread Length 1-7/16 in
Material Carbon Steel
Finish Zinc Plated
Minimum Embedment De 1-3/4 in
Drill Size 1/4 in
Thread Size 1-7/16 in
