Simpson Strong-Tie® SIMS STB2-50512

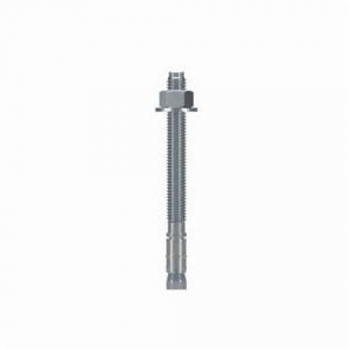

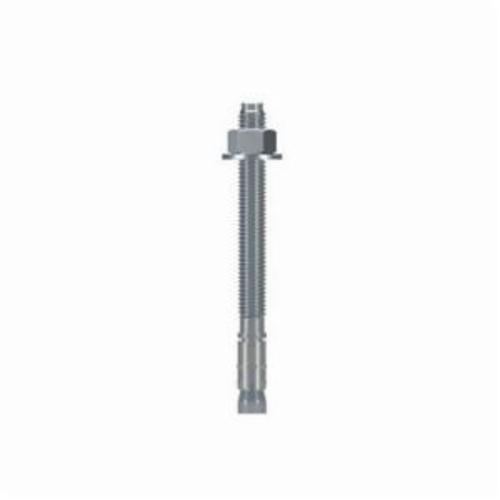

Simpson Strong-Tie® STB2-50512 Strong-Bolt® 2 Wedge Anchor, 1/2 in Dia, 5-1/2 in OAL, 3-13/16 in L Thread, Carbon Steel, Zinc Plated

UPC: 707392648505
UNSPSC: 31162102
Manufacturer PN: STB2-50512
$23.44 BX
Factory Order
Estimated to ship in 7 days
QTY:


Simpson Strong-Tie® Wedge Anchor, Series: Strong-Bolt® 2, 1/2 in Dia, 5-1/2 in Overall Length, 3-13/16 in Thread Length, Carbon Steel, Zinc Plated, 2-3/4 in Minimum Embedment Depth, 1/2 in Drill, 1/2-13, 3/4 in Head, 5-1/2 in Maximum Work Thickness, 115000 psi Tensile

  • Features

  • Tri-segmented clip, each segment adjusts independently, increasing follow-up expansion, should the hole increase in size as a result of a crack
  • Dual embossments on each clip segment, enable the clip to undercut into the concrete, thereby increasing follow-up expansion should a crack occur
  • Standard (ANSI) fractional anchor, The Strong-Bolt 2 is sized to fit most fixtures and it installs with common drill bit sizes and tools
  • Standard fractional sizes fits standard fixtures and installs with common drill bit and tool sizes
  • Carbon steel stud with special alloy clip
  • Carbon steel ASTM A563 grade A nut
  • Carbon steel ASTM F844 washer
  • Carbon steel ASTM A568 clip
  • 9/16 in Dia baseplate clearance hole
  • 60 ft-lb installation torque

Specifications

ApplicationFor optimal performance in cracked and uncracked concrete as well as uncracked masonry
Series Strong-Bolt® 2
Diameter 1/2 in
Overall Length 5-1/2 in
Thread Length 3-13/16 in
Material Carbon Steel
Finish Zinc Plated
Minimum Embedment De 2-3/4 in
Drill Size 1/2 in
Thread Size 1/2-13
