Simpson Strong-Tie SIMS STB2-25134

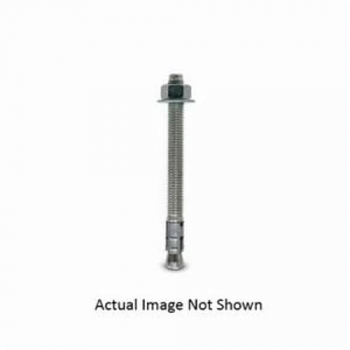

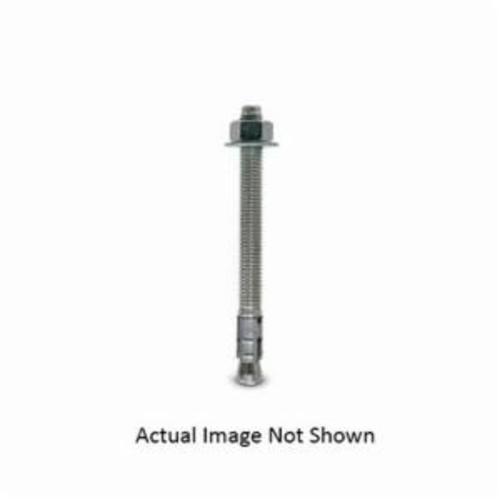

Simpson Strong-Tie STB2-25134 Strong-Bolt 2 Wedge Anchor, 1/4 in Dia, 1-3/4 in OAL, 15/16 in L Thread, Carbon Steel, Zinc Plated

UPC: 707392229001
UNSPSC: 31162102
Manufacturer PN: STB2-25134
$38.32 BX
Factory Order
Estimated to ship in 7 days
QTY:


Simpson Strong-Tie Wedge Anchor, Series: Strong-Bolt 2, 1/4 in Dia, 1-3/4 in Overall Length, 15/16 in Thread Length, Carbon Steel, Zinc Plated, 1-3/4 in Minimum Embedment Depth, 1/4 in Drill, 15/16 in, 7/16 in Head, 3-1/4 in Maximum Work Thickness, 70000 psi Tensile

  • Features

  • Tri-segmented clip, each segment adjusts independently, increasing follow-up expansion, should the hole increase in size as a result of a crack
  • Dual embossments on each clip segment, enable the clip to undercut into the concrete, thereby increasing follow-up expansion should a crack occur
  • Standard (ANSI) fractional anchor, The Strong-Bolt 2 is sized to fit most fixtures and it installs with common drill bit sizes and tools
  • Standard fractional sizes fits standard fixtures and installs with common drill bit and tool sizes
  • Carbon steel stud with special alloy clip
  • Carbon steel ASTM A563 grade A nut
  • Carbon steel ASTM F844 washer
  • Carbon steel ASTM A568 clip
  • 5/16 in Dia baseplate clearance hole
  • 4 ft-lb installation torque

Specifications

ApplicationFor optimal performance in cracked and uncracked concrete as well as uncracked masonry
Diameter1/4 in
Drill Size1/4 in
FinishZinc Plated
Head Size7/16 in
MaterialCarbon Steel
Maximum Work Thickness3-1/4 in
Minimum Embedment Depth1-3/4 in
Overall Length1-3/4 in
SeriesStrong-Bolt 2
Tensile Strength70000 psi
Thread Length15/16 in
Thread Size15/16 in
