Simpson Strong-Tie® SIMS WA62812

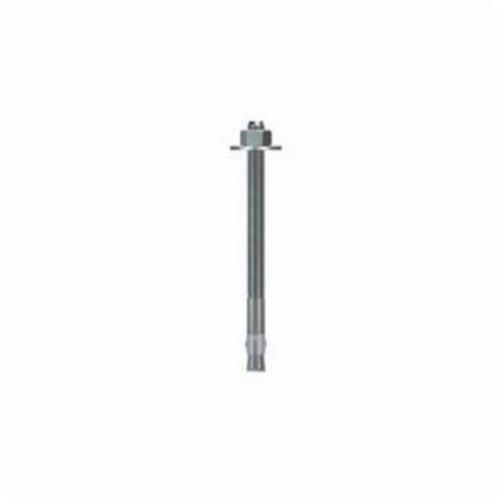

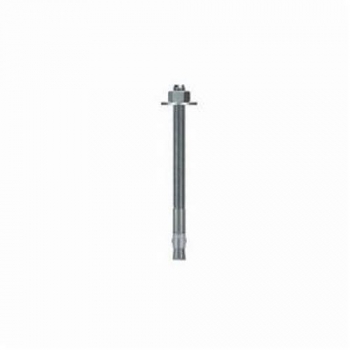

Simpson Strong-Tie® WA62812 Wedge-All® Wedge Anchor, 5/8 in Dia, 8-1/2 in OAL, 6 in L Thread, Carbon Steel, Zinc Plated
Simpson Strong-Tie® Wedge Anchor, Series: Wedge-All®, 5/8 in Dia, 8-1/2 in Overall Length, 6 in Thread Length, Carbon Steel, Zinc Plated, 2-3/4 in Minimum Embedment Depth, 5/8 in Drill, 15/16 in Head, 1699 lb Shear Strength, 120 lb Tensile
Features
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- One-piece, wrap-around clip ensures uniform holding capacity
- Threaded end is chamfered for ease of starting nut
- Available in a wide range of diameters and lengths
- Carbon steel ASTM A563 grade A nut
- The minimum concrete thickness is 1-1/2 times the embedment depth
- The allowable loads are based on a safety factor of 4
- 11/16 in minimum fixture hole
- 90 ft-lb installation torque
- 4520 lb at 2000 psi/8600 lb at 4000 psi ultimate tension loads and 1130 lb at 2000 psi, 1640 lb at 3000 psi, 2150 lb at 4000 psi for concrete
Specifications
ApplicationFor interior environment, low level of corrosion resistance
Series Wedge-All®
Diameter 5/8 in
Overall Length 8-1/2 in
Thread Length 6 in
Material Carbon Steel
Finish Zinc Plated
Minimum Embedment De 2-3/4 in
Drill Size 5/8 in
