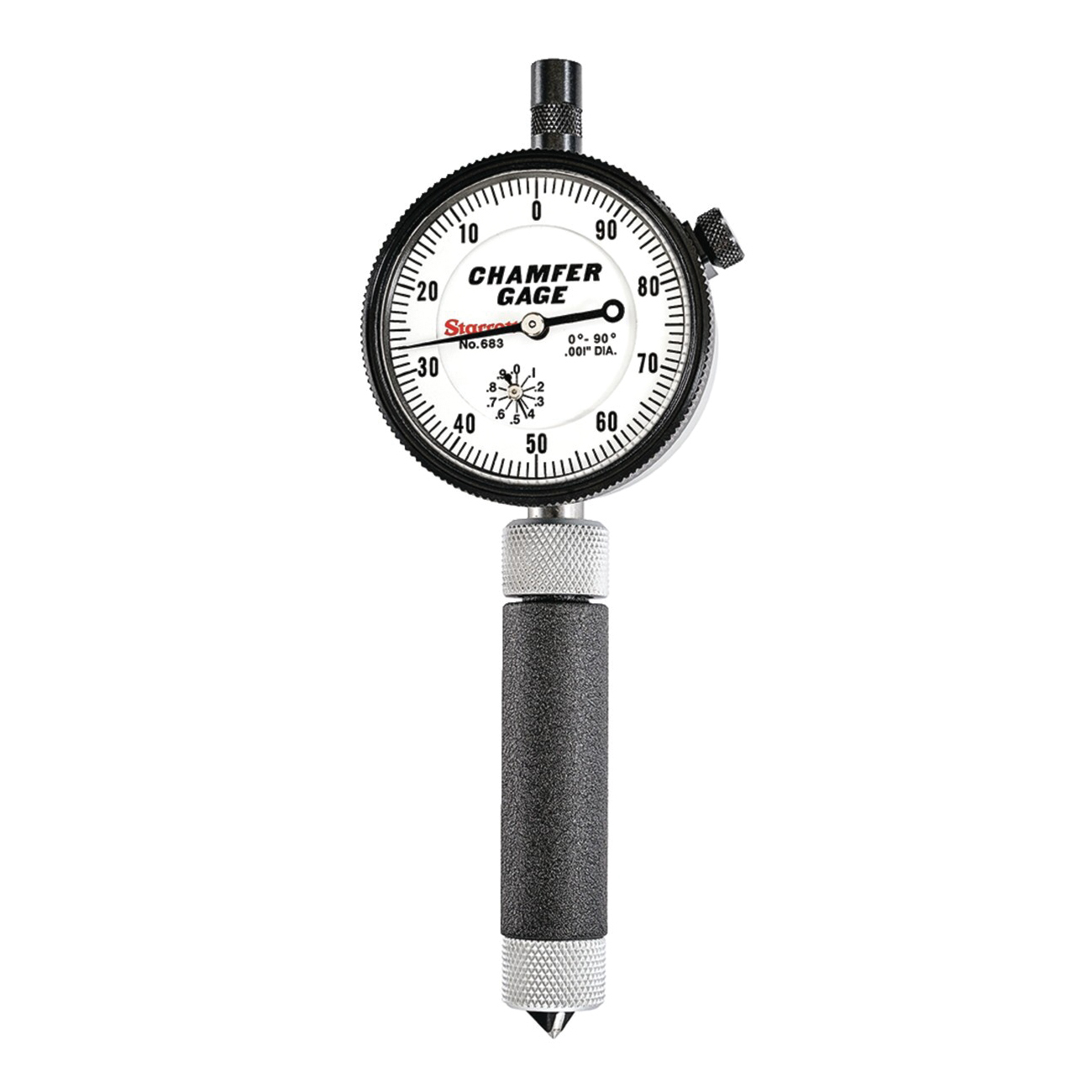

Starrett® LSS 683-1Z

Starrett® Chamfer Gage, Internal, Series: 683, 0 to 3/8 in Measuring, Graduations: 0.001 in, 3-Blade Plunger, 2-19/64 in Dia x 57/64 in H Dial, White Dial, Hardened Tool Steel

• Features

• When the three blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator
• No setting master is necessary
• Internal gages will measure the largest diameter of any chamfer that has an included angle within the range of angles printed on the dial face
• Gages are also available with electronic indicators on request
• Deluxe padded case
• All ground surfaces are of hardened tool steel
• Indicators are AGD design
• Gages directly measure the diameter of chamfered holes
• For 0 - 90 deg Dial reading

Specifications

Documents

• Full Engineering Drawing
