Starrett® LSS 683M-1Z

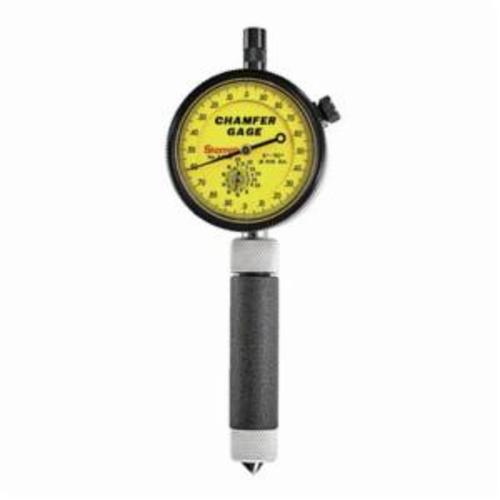

Starrett® 683M-1Z Internal Chamfer Gage, 0 to 9.5 mm Measuring, Graduations 0.02 mm, 3-Blade Plunger, Hardened Tool Steel

UPC: 049659649895

UNSPSC: 41111600

Manufacturer PN: 683M-1Z

^$923.78 EA

Factory Order

Starrett® Chamfer Gage, Internal, Series: 683, 0 to 9.5 mm Measuring, Graduations: 0.02 mm, 3-Blade Plunger, Yellow Dial, Hardened Tool Steel

Features
When the three blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator
No setting master is necessary
Gages will measure the smallest diameter of any chamfer within the range of angles printed on the dial face of the gage
Gages are also available with electronic indicators on request

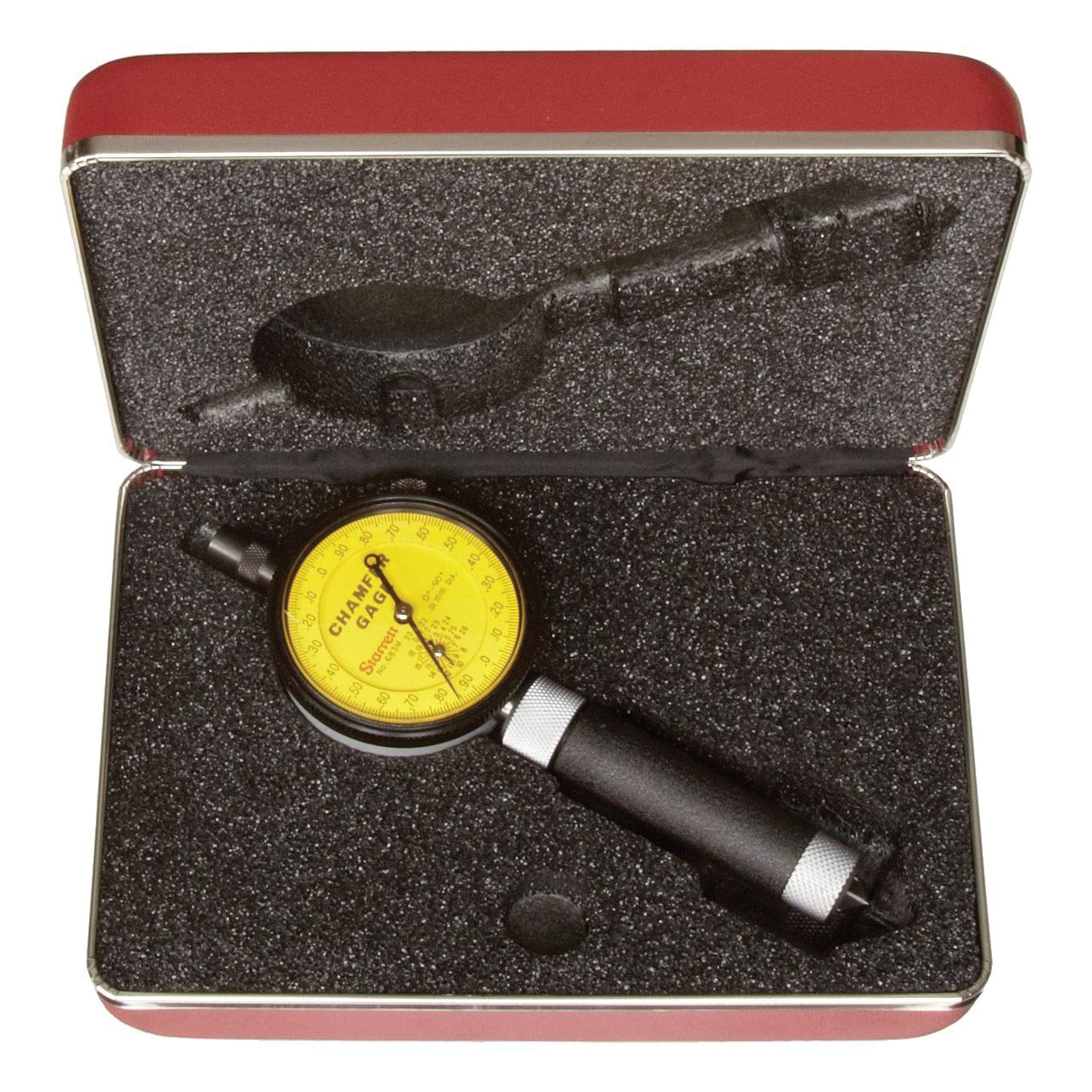

Deluxe padded case
All ground surfaces are of hardened tool steel
Indicators are AGD design
Gages directly measure the diameter of chamfered holes
For 0 - 90 deg Dial reading
