Starrett® LSS 684-2Z

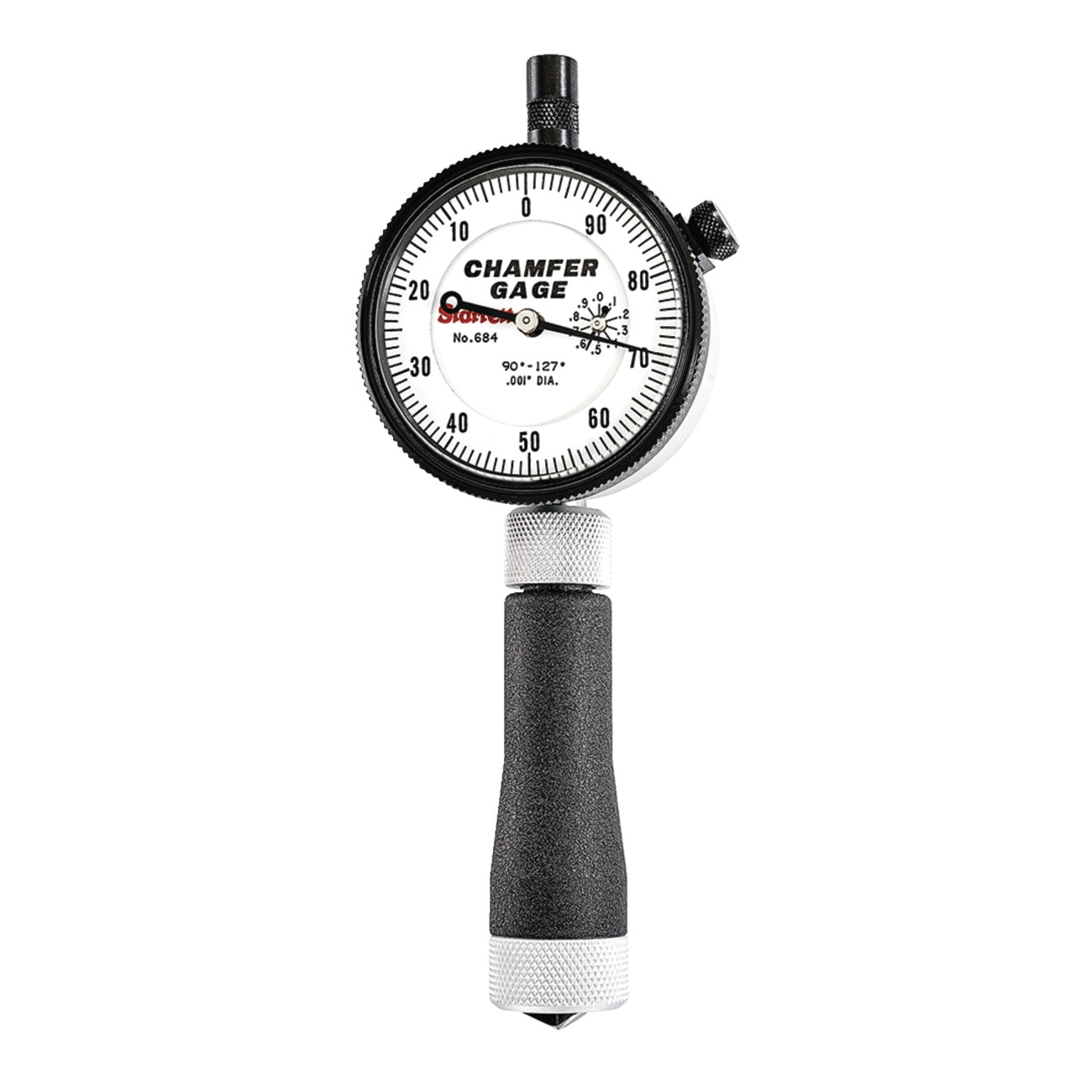

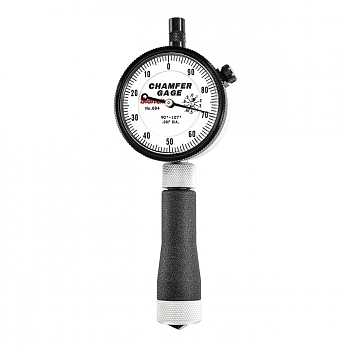

Starrett® 684-2Z Internal Chamfer Gage, 0 to 1/2 in Measuring, Graduations 0.001 in, 3-Blade Plunger, Hardened Tool Steel
Starrett® Chamfer Gage, Internal, Series: 684, 0 to 1/2 in Measuring, Graduations: 0.001 in, 3-Blade Plunger, White Dial, Hardened Tool Steel
Features
- When the three blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator
- No setting master is necessary
- Internal gages will measure the largest diameter of any chamfer that has an included angle within the range of angles printed on the dial face
- Gages are also available with electronic indicators on request

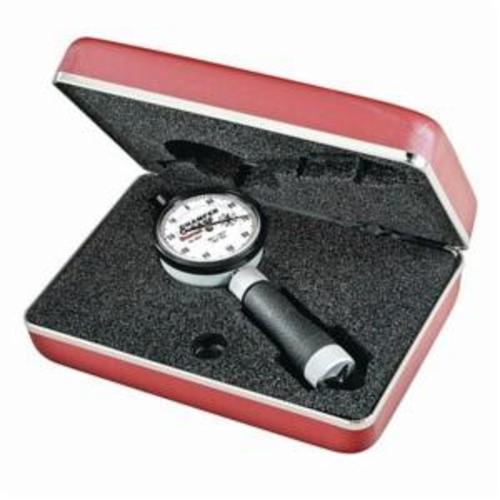

- Deluxe padded case
- All ground surfaces are of hardened tool steel
- Indicators are AGD design
- Gages directly measure the diameter of chamfered holes
- For 90 - 127 deg Dial reading
Specifications
Type Internal
Series 684
Measuring Range 0 to 1/2 in
Graduations 0.001 in
Plunger Type 3-Blade
Dial Color White
Material Hardened Tool Steel
