Starrett LSS 684-1Z

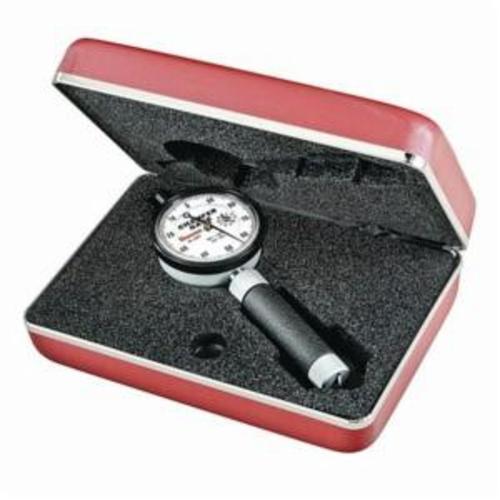

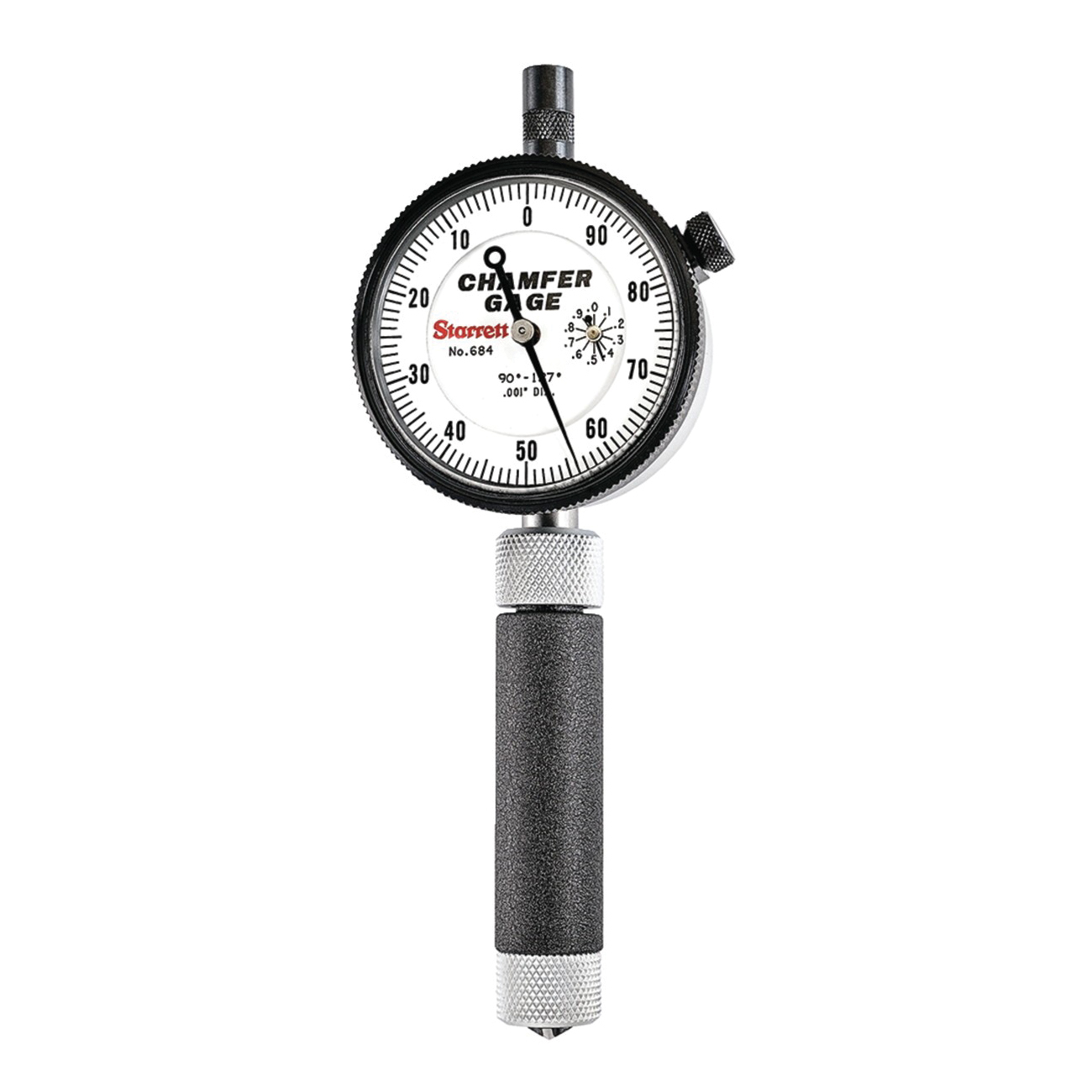

Starrett 684-1Z Internal Chamfer Gage, 0 to 3/8 in Measuring, Graduations 0.001 in, 3-Blade Plunger, 2-9/32 in Dia Dial, Hardened Tool Steel

UPC: 049659636888
UNSPSC: 41111600
Manufacturer PN: 684-1Z
$969.54 EA
Factory Order
QTY:


Starrett Chamfer Gage, Internal, Series: 684, 0 to 3/8 in Measuring, Graduations: 0.001 in, 3-Blade Plunger, 2-9/32 in Dia Dial, White Dial, Hardened Tool Steel

  • Features

  • When the three blade plunger is pressed against a flat surface, the gage should read the set number stamped on the back of the indicator
  • No setting master is necessary
  • Internal gages will measure the largest diameter of any chamfer that has an included angle within the range of angles printed on the dial face
  • Gages are also available with electronic indicators on request
  • Deluxe padded case
  • All ground surfaces are of hardened tool steel
  • Indicators are AGD design
  • Gages directly measure the diameter of chamfered holes
  • For 90 - 127 deg Dial reading

Specifications

Dial ColorWhite
Dial Size2-9/32 in Dia
Graduations0.001 in
MaterialHardened Tool Steel
Measuring Range0 to 3/8 in
Plunger Type3-Blade
Series684
TypeInternal
