Simpson Strong-Tie SIMS STB2-50700

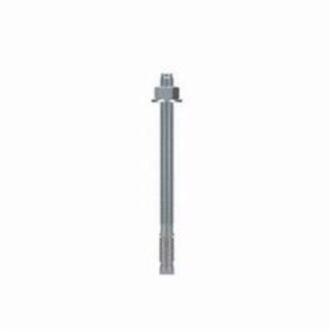

Simpson Strong-Tie STB2-50700 Strong-Bolt 2 Wedge Anchor, 1/2 in Dia, 7 in OAL, 5-5/16 in L Thread, Carbon Steel, Zinc Plated
Invoice description:
Anchor Wedge 1/2x7 Stron G Bolt 2, 25/bx
UPC: 707392176008
UNSPSC:
31162102
Manufacturer PN: STB2-50700
$35.42 BX
Factory OrderEstimated to ship in 7 days
Simpson Strong-Tie Wedge Anchor, Series: Strong-Bolt 2, 1/2 in Dia, 7 in Overall Length, 5-5/16 in Thread Length, Carbon Steel, Zinc Plated, 2-3/4 in Minimum Embedment Depth, 1/2 in Drill, 1/2-13, 3/4 in Head, 5-1/2 in Maximum Work Thickness, 115000 psi Tensile
Features
- Tri-segmented clip, each segment adjusts independently, increasing follow-up expansion, should the hole increase in size as a result of a crack
- Dual embossments on each clip segment, enable the clip to undercut into the concrete, thereby increasing follow-up expansion should a crack occur
- Standard (ANSI) fractional anchor, The Strong-Bolt 2 is sized to fit most fixtures and it installs with common drill bit sizes and tools
- Standard fractional sizes fits standard fixtures and installs with common drill bit and tool sizes
- Carbon steel stud with special alloy clip
- Carbon steel ASTM A563 grade A nut
- Carbon steel ASTM F844 washer
- Carbon steel ASTM A568 clip
- 9/16 in Dia baseplate clearance hole
- 60 ft-lb installation torque
Specifications
ApplicationFor optimal performance in cracked and uncracked concrete as well as uncracked masonry
Diameter1/2 in
Drill Size1/2 in
FinishZinc Plated
Head Size3/4 in
MaterialCarbon Steel
Maximum Work Thickness5-1/2 in
Minimum Embedment Depth2-3/4 in
Overall Length7 in
SeriesStrong-Bolt 2
Tensile Strength115000 psi
Thread Length5-5/16 in
Thread Size1/2-13
Additional Information
Standards/ApprovalASTM B633|Class SC 1|Type III|Florida Statewide Pr
Country of OriginCN
Technical Bulletin
