Simpson Strong-Tie SIMS STB2-62412

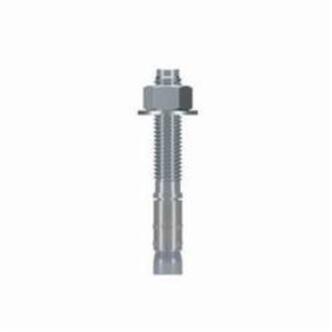

Simpson Strong-Tie STB2-62412 Strong-Bolt 2 Wedge Anchor, 5/8 in Dia, 4-1/2 in OAL, 2-7/16 in L Thread, Carbon Steel, Zinc Plated
Invoice description:
Anchor Wedge 5/8x4-1/2 S Trong Bolt 2, 20/bx
UPC: 707392170907
UNSPSC:
31162102
Manufacturer PN: STB2-62412
$38.68 BX
Factory OrderEstimated to ship in 7 days
Simpson Strong-Tie Wedge Anchor, Series: Strong-Bolt 2, 5/8 in Dia, 4-1/2 in Overall Length, 2-7/16 in Thread Length, Carbon Steel, Zinc Plated, 3-3/8 in Minimum Embedment Depth, 5/8 in Drill, 5/8-11, 15/16 in Head, 7-7/8 in Maximum Work Thickness, 115000 psi Tensile
Features
- Tri-segmented clip, each segment adjusts independently, increasing follow-up expansion, should the hole increase in size as a result of a crack
- Dual embossments on each clip segment, enable the clip to undercut into the concrete, thereby increasing follow-up expansion should a crack occur
- Standard (ANSI) fractional anchor, The Strong-Bolt 2 is sized to fit most fixtures and it installs with common drill bit sizes and tools
- Standard fractional sizes fits standard fixtures and installs with common drill bit and tool sizes
- Carbon steel stud with special alloy clip
- Carbon steel ASTM A563 grade A nut
- Carbon steel ASTM F844 washer
- Carbon steel ASTM A568 clip
- 11/16 in Dia baseplate clearance hole
- 90 ft-lb installation torque
Specifications
ApplicationFor optimal performance in cracked and uncracked concrete as well as uncracked masonry
Diameter5/8 in
Drill Size5/8 in
FinishZinc Plated
Head Size15/16 in
MaterialCarbon Steel
Maximum Work Thickness7-7/8 in
Minimum Embedment Depth3-3/8 in
Overall Length4-1/2 in
SeriesStrong-Bolt 2
Tensile Strength115000 psi
Thread Length2-7/16 in
Thread Size5/8-11
Additional Information
Standards/ApprovalASTM B633|Class SC 1|Type III|Florida Statewide Pr
Country of OriginCN
